Floating Roof Tank Legs

The floating roof support leg boot provides excellent chemical resistance against products in the tank while resisting the harshest environmental conditions outside the tank.

Floating roof tank legs.

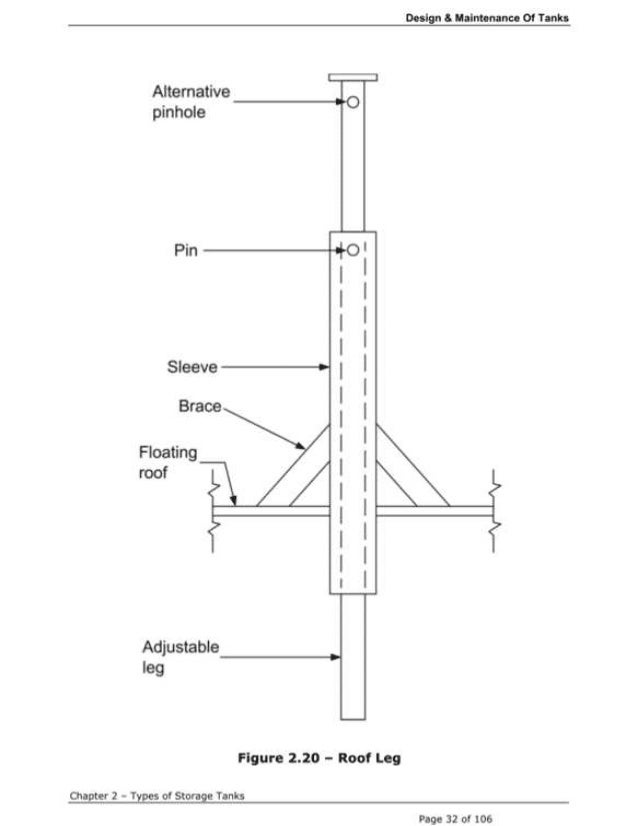

The floating roof support leg sock id is determined by the roof support leg handle type pin length and leg sleeve od. The picture above shows an external floating roof with the roof legs in the high position in this position there is typically about 6 of space between the floor and roof. The length of the legs must be adjustable from the top of the roof and the legs must be notched or perforated at the bottom to provide drainage. Floating roof tank etc.

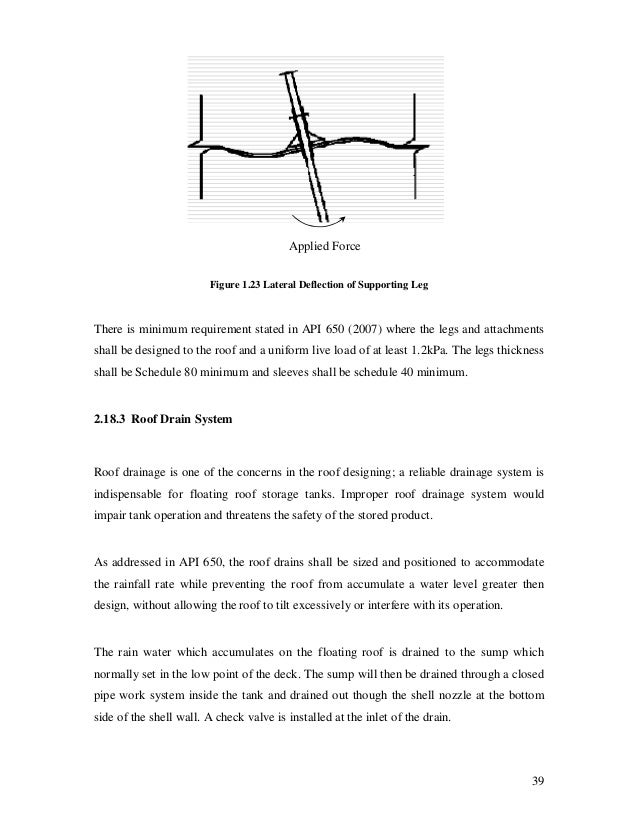

The floating roof must be provided with landing legs that are designed to support the external floating roof under a uniform design load of at least 25 psf api 650 appendix c 3 10. Floating roof legs various regulatory agencies recommend that appurtenances such as floating roof legs and leg sleeves be equipped with emissions control devices. Various aspects of the floating roof tank working like the operation. Ateco tank reduces hydrocarbon emissions from the leg and leg sleeves and it was designed under the guidance of the strictest of environment regulations.

Holes should be drilled in them so they can be flushed through. The roof rises and falls with the liquid level in the tank. Floating roof tank is which the roof floats directly on top of the product with no vapour space and eliminating the possibility of flammable atmosphere. C sometimes a floating roof is inside a fixed roof tank.

An external floating roof tank is a storage tank commonly used to store large quantities of petroleum products such as crude oil or condensate. 2 18 2 support leg 38 2 18 3 roof drain system 39 2 18 4 vent bleeder vents 43 2 18 5 centering and anti rotation device 44. Specifically it is an environment friendly and economical storage tank or oil tank installed a floating roof under the vault of the tank usually made of aluminum stainless steel or other material to prevent the. The roof leg is pinned through the sleeve in this position prior to landing the roof to do maintenance inside the tank.

The floating roof tank animation describes the working principle in the training module. It consists of an open topped cylindrical steel shell equipped with a roof that floats on the surface of the stored liquid.
