Double Wall Ammonia Storage Tank Design

Fb tanks design services team integrates your specific project requirement with detailed cad drawings.

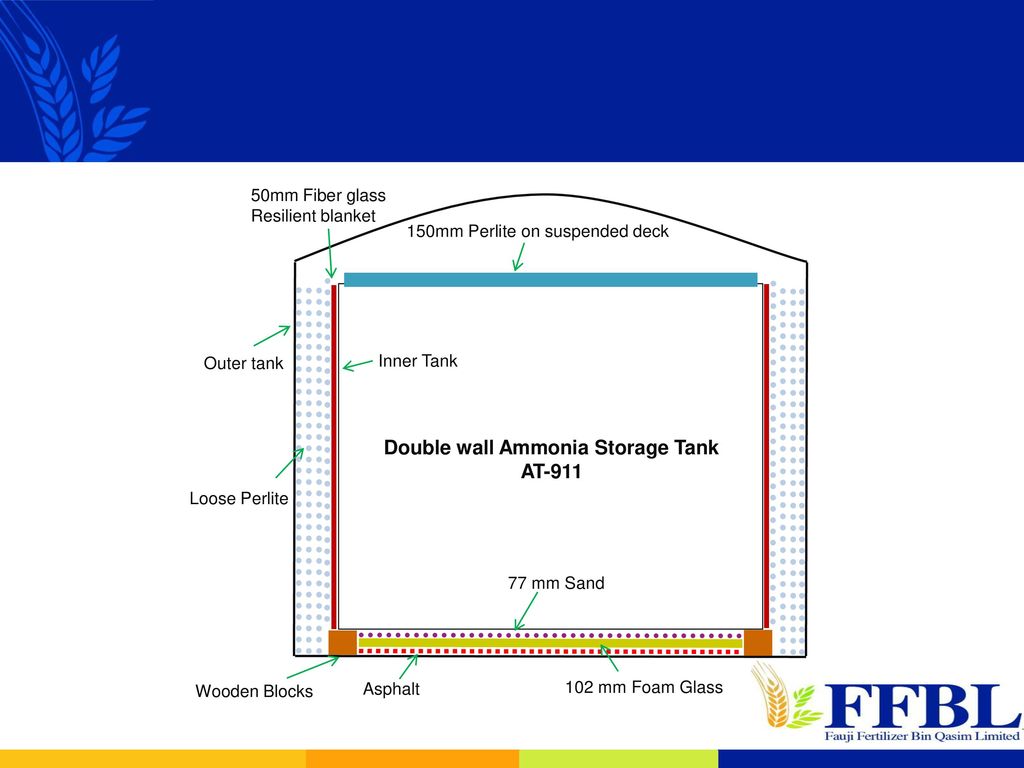

Double wall ammonia storage tank design.

We constantly review our in house procedures thus ensuring that our standards of excellence continue to meet our customers needs. Success is measured by repeat orders from satisfied clients. Cryogenic systems store liquids at temperature as low as 268 c liquified gases including ethylene butadiene butane propane propylene ammonia chlorine carbon dioxide lng lpg oxygen. 2 single wall tank may be more costly because of material of construction.

These designs single wall have been used in some plants which. 1 single wall ammonia storage can generate more vapor and thus leads to little higher ammonia pressure in tank and more ammonia loss to atmosphere in comparison to double wall storage. I have found two references regarding this point 1. Water storage tanks as per indian standards and awwa.

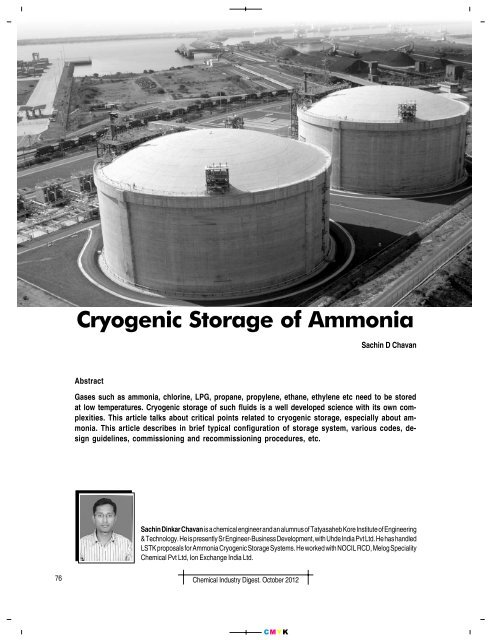

Scope turnkey design and construction of a double walled ammonia storage tank incl. The tank can store products at temperatures as low as 51 c and below. According to ammonia storage selection and safety issues. Cup in a tank is a double wall ammonia storage tank designed with an insulated outer steel tank and an open inner steel tank holding the liquid ammonia the annular space between the outer and inner tank is filled with ammonia vapour ammonia storage tank design page 2 ammonia stress corrosion cracking nh 3.

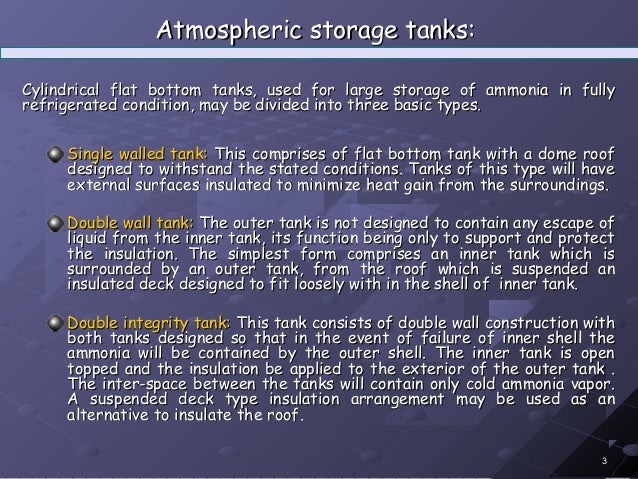

Ammonia storage tank design posted in industrial professionals. Between single wall and double wall atmospheric nh3 storage tanks regarding safety issues. G s lele chemical industry digest may 2008. What is the diff.

Refrigerated cryogenic double wall storage tank as per api 620. Anhydrous ammonia storage tank design calculations drawings. Double walled storage tanks known as cryogenic storage tanks are meant for low temperature storage of liquid hydrocarbons. Challenge the construction of the entire tank was completed in less than a year.

Civil works piping instrumentation e i and facilities for ship unloading and railcar loading. Refrigerated liquid ammonia capacity.
